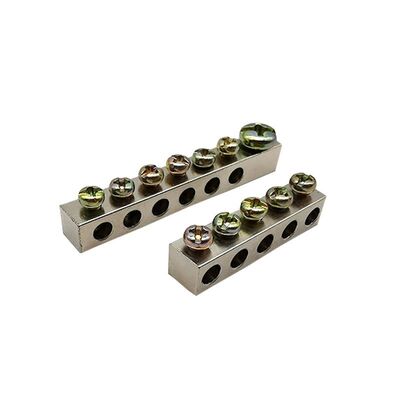

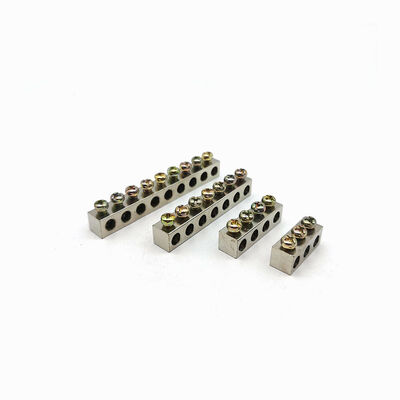

Copper Neutral Busbar PCB Screw Terminal 100A 2-8 Pole Tin-Plated DIN Rail Mounted

Copper Neutral Busbar 100A 2-8 Pole Tin-Plated DIN Rail Mounted UL Listed

What is a Neutral Busbar?

A neutral busbar is a metallic bar, strip, or terminal block found in electrical panels (like load centers, switchboards, and panelboards) that serves as a common connection point for multiple neutral wires . In AC electrical systems, it provides the return path for current to the source, completing the circuit. It is essential for load balancing, safety, and ensuring proper grounding within an electrical distribution system .

Material of Neutral Busbar

The base material directly impacts conductivity, cost, and application suitability.

1. Copper: Offers the highest conductivity. Often used in high-performance or "All Copper" panel specifications, though the neutral bar itself may still be plated aluminum in standard panels unless specified otherwise .

2. Aluminum: A common, cost-effective material for neutral bar in residential and commercial load centers, often specified as "tin-plated aluminum" .

3. Steel: Used in specific applications like support structures or busbar clamps, often electro-galvanized for corrosion resistance .

Surface Finishes

Finishes are critical for preventing corrosion (galvanic corrosion between dissimilar metals) and maintaining a low-resistance connection.

1. Tin Plating: The most common and preferred finish. It provides excellent corrosion resistance, maintains good conductivity, and prevents copper oxidation (copper green). It is compatible with both copper and aluminum conductors .

2. Electro-galvanized: A zinc coating applied to steel components (like mounting clamps) to prevent rust .

3. No Finish (Bare): Sometimes used, but prone to oxidation. Painting is considered an obsolete process for neutral bar functionality .

Specifications

Primary Applications

Neutral busbars are utilized wherever multiple circuits require a common return path.

1. Electrical Panelboards & Load Centers: Used as the main termination point for branch circuit neutrals in residential and commercial buildings.

2. Switchgear and Control Equipment: Provides organized neutral connections in industrial control panels .

3. Power Distribution: Essential in high-ampacity systems for data centers, wind turbines, and solar power generation .

4. Earthing Systems: Combined earthing and neutral bars are used to connect multiple grounding conductors within a panel .

Best Practice Application Example

Scenario: Adding a neutral termination point in a new industrial control panel.

An electrician installs an nVent ERIFLEX EBC-133 earthing and neutral busbar . Neutral bar is cut to length and mounted using insulating spacers to isolate it from the metal backplate. Multiple 4 AWG stranded copper neutral conductors are terminated using the pre-assembled clamps, which follow the screw vertically to ensure secure clamping force without damaging the strands. The tin-plated copper bar ensures a corrosion-resistant, low-impedance path for the return current, compliant with VDE and UL standards.
